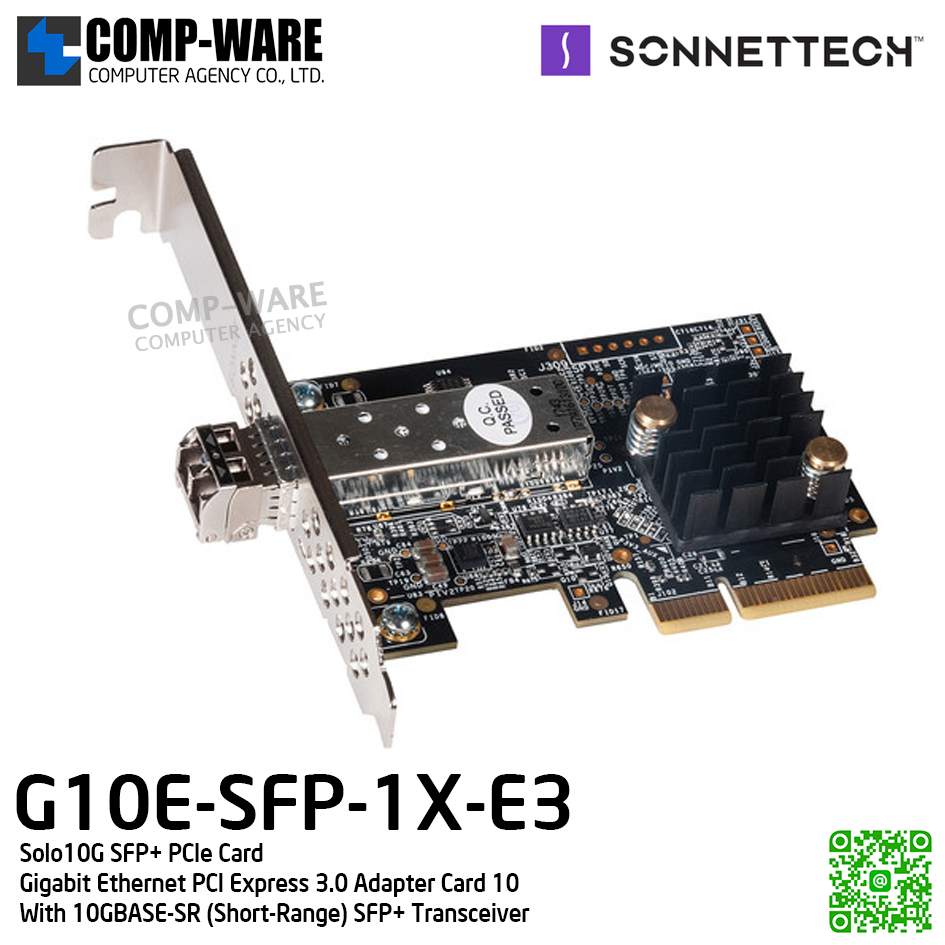

Solo10G SFP+ PCIe Card

10 Gigabit Ethernet PCI Express 3.0 Card with Short-Range SFP+ Transceiver

Blazing-Fast 10GbE Connectivity Over Optical Cables

Made possible by advances in technology—plus cheaper gear—more content than ever is captured and outputted at 4K and higher resolutions. The resulting files are larger than ever. For post-production shared storage workgroups and other bandwidth-intensive workflows, 10 Gigabit Ethernet (10GbE) has become the new data transfer standard.

While very affordable 10GbE switches have helped to significantly reduce the expense of setting up 10GbE infrastructure, the price of adding client connectivity—especially fiber optic connections—has remained a barrier for some. Now, there is an equally affordable 10GbE interface for your desktop and workstation computers—Sonnet’s Solo10G™ SFP+ PCIe® Card, a powerfully simple solution for adding blazing-fast fiber optic 10GbE network connectivity to Mac®, Windows®, and Linux® computers at a price that’s sure to please.

Key Features:

  • Adds 10GbE Connectivity to Mac Pro Towers, Windows PCs, or Linux Servers—Powerfully simple way to add high-performance 10GbE connectivity via optical cable to your computer with PCIe slots
  • Cost-Effective—Includes 10GBASE-SR (short-range) SFP+ transceiver and supports connection up to 300 meters to 10GbE infrastructure via LC multi-mode fiber optic cable (sold separately)
  • Easy Setup—Configure using your computer’s operating system network device configuration tools
  • Optimized for Thunderbolt™—Ideal for use in Sonnet’s Echo™ Express and xMac™ Thunderbolt-to-PCIe card expansion systems


Technical Specifications


Computer Compatibility
  • Mac Pro® 5,1 or 7,1 (2019)
  • PC desktop or server
OS Compatibility
  • macOS® 10.13.6+
  • macOS Ventura compatible
  • Windows® 11, 10, 8, 7; Server 2019, 2016, 2012
  • Linux®
  • VMware ESXi 8,7
Thunderbolt Compatibility
  • Mac (Intel® or M1) via a Thunderbolt to PCIe Card Expansion System
  • Windows computer running Windows 10 Build 1809 or newer (64-bit edition) via a Thunderbolt to PCIe Card Expansion System

Hardware
Part Number
G10E-SFP-1X-E3
  • Solo10G SFP+ PCIe Card
  • 10 Gigabit Ethernet PCI Express 3.0 Adapter Card With 10GBASE-SR (Short-Range) SFP+ Transceiver

G10E-SFP-SR
  • SFP+ Transceiver (Short-Range)
  • - Included

G10E-SFP-LR
  • SFP+ Transceiver (Long-Range)
  • – Sold Separately

G10E-SFP-T
  • SFP+ Transceiver (10GBASE-T)
  • – Sold Separately


Form Factor Low-profile PCIe computer card
Transceiver Interface Type One SFP+ socket with 10GBASE-SR (300m) SFP+ Optical Transceiver
Bus Interface PCI Express v3.0, x4
Controller Aquantia AQC-100S
Packets Maximum packet size: 16352 bytes (jumbo frames) 9000 bytes under macOS
Data Rate Supported per Port 10 Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s(3)
Advanced Features
  • Flow control support
  • MSI (Message Signaled Interrupts)
  • RSS (Receive-Side Scaling)
  • Interrupt coalescing
  • Multicast filtering
  • Energy-Efficient Ethernet (IEEE 802.3az)
  • 64-bit address support for systems using more than 4GB of physical memory

Stateless Offloads
  • TCP, UDP and IPv4 checksum offloading
  • TSO (TCP Segmentation Offload, AKA Large Send Offload)
  • LRO (Large Receive Offload)

Compliance
  • RoHS 3 (Directive 2015/863)
  • IEC62368-1 and IEC62368-2

Package Contents
  • Solo10G SFP+ PCIe Card
  • 10GBASE-SR (short-range) SFP+ transceiver
  • Two mounting brackets (full-height and low-profile)
  • Documentation

Warranty 1 Year
