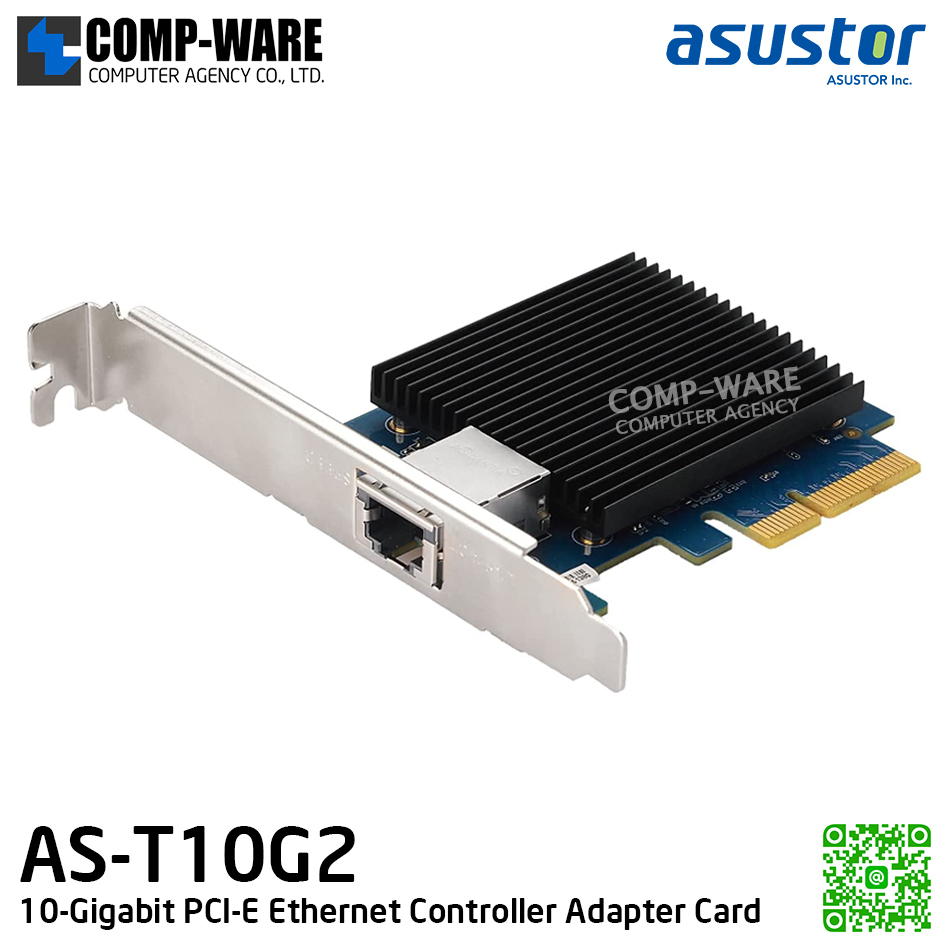

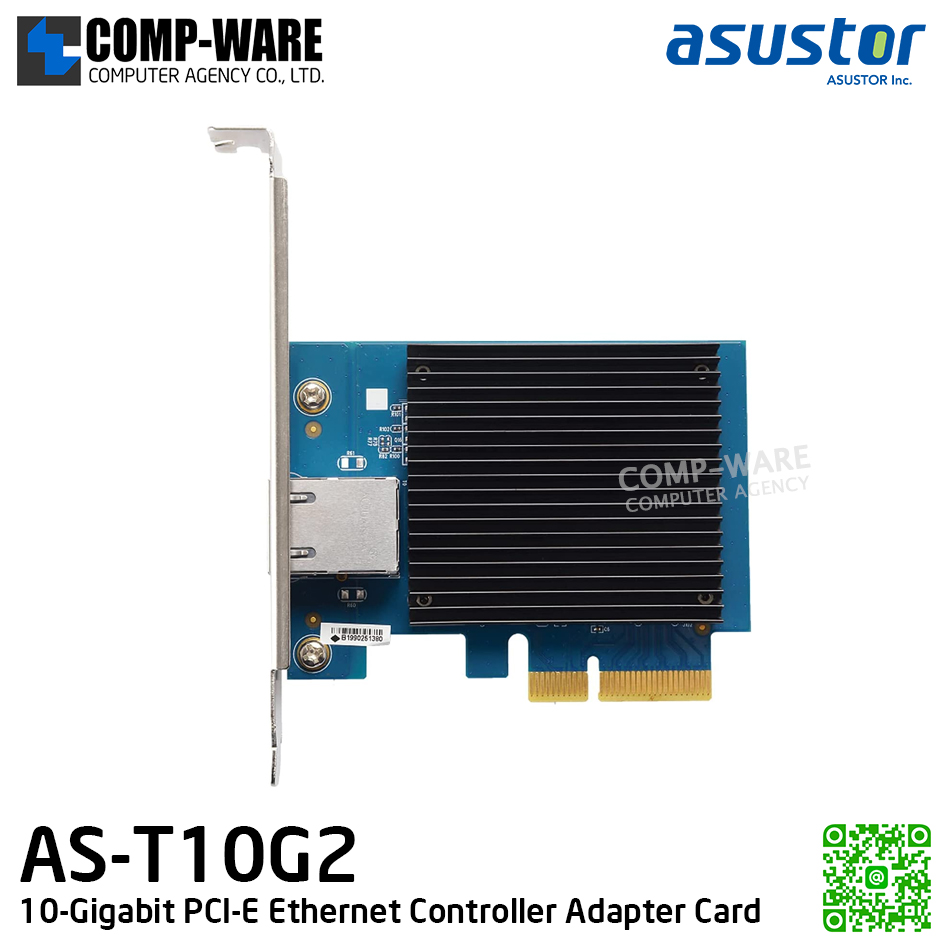

Asustor AS-T10G2 10-Gigabit PCI-E Ethernet Controller Adapter Card (2Y Warranty)

**กรุณาตรวจสอบความเข้ากันได้ของสินค้าก่อนทำการสั่งซื้อ**
Asustor AS-T10G2 10-Gigabit PCI-E Ethernet Controller Adapter Card (2Y Warranty)

A Great value and high speed 10-Gigabit Ethernet controller able to handle almost any situation.

• Marvell AQC 107 controller
• Supports 16K frames
• Supports IP, TCP, UDP checksum offloading – Reduced CPU usage
• Supports IEEE 802.1Q VLAN ID tagging, IEEE 802.1q QoS
• Includes an RJ45 port. Fast and easy networking without fiber
• Compatible with 10GbE, 5GbE, 2.5GbE, Gigabit and 100MbE speeds
• Compatible with ASUSTOR ADM (3.5.6 and above), Windows, MacOS, Linux and VMware ESXi

Hardware Specifications

• Supported Standards:

  • IEEE 802.3an: 10GBase-T Gigabit Ethernet
  • IEEE 802.3ab 1000Base-TGigabit Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3bz NBASE-T
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.1p Priority Queuing
  • IEEE 802.3x: Flow Control and Back Pressure
  • IEEE 802.1Q Tagged VLAN support
  • IEEE 802.1Qav,AVB (Audio Video Bridging)
  • IEEE 1588 v2 PTP (Precision Time Protocol)
• Maximum speed: 10 Gbps
• Transmission mode:Full Duplex
• Interface: PCI Express Gen-3/2 x4 Host Bus
• Bracket support: Full-height, Low-profile
• Operating temperature: 0-50°C
• Non-operating temperatures: -40–85°C
• Humidity: 5-95% relative humidity
• Certifications: FCC, CE
• Supported features:
  • Jumbo Frame 16KB
  • IP, TCP, UDP checksum offload
  • Supports 100MbE, 1GbE, 2.5GbE ,5GbE and 10GbE
• Supported OS:
  • ADM 3.5.6 或以上
  • Windows 7/8/8.1/10 (32/64-bit)
  • Linux Kernel 4.4, 4.8, 4.9
• Supported devices: ASUSTOR NAS devices and PCs with a standard PCI Express slot are compatible.
• Warranty: 2 Years

Size and Weight:

• Size: 86.95 (W) x 67.9 (D) mm
• Weight: 77 g

Package Contents:

• AS-T10G2 x1
• Installation CD x1
• Quick Installation Guide x1
• Low Profile Bracket x1

Complete Compatibility:
The AS-T10G2 works with any ASUSTOR NAS with a standard PCI Express slot, including the Lockerstor 12R Pro and 16R Pro as well as the Lockerstor 4RD, 4RS and 12RD. The AS-T10G2 is one of the best additions to a 10-Gigabit Ethernet network and is able to multiply network performance by up to 10 times the file transfer performance of Gigabit Ethernet in your home and/or office PC. The AS-T10G2 supports 100/1000/2500/5000/10000 speeds, making it incredibly versatile and compatible with virtually any network type. Insert an AS-T10G2 into any compatible ASUSTOR NAS running ADM 3.5.6 and above while installing another one to your desktop or workstation PC and connect them each to a 10-Gigabit Ethernet switch or router to experience blazing fast speeds using regular Ethernet cables.




Full Spec >> https://www.asustor.com/en/product/AS_T10G2
