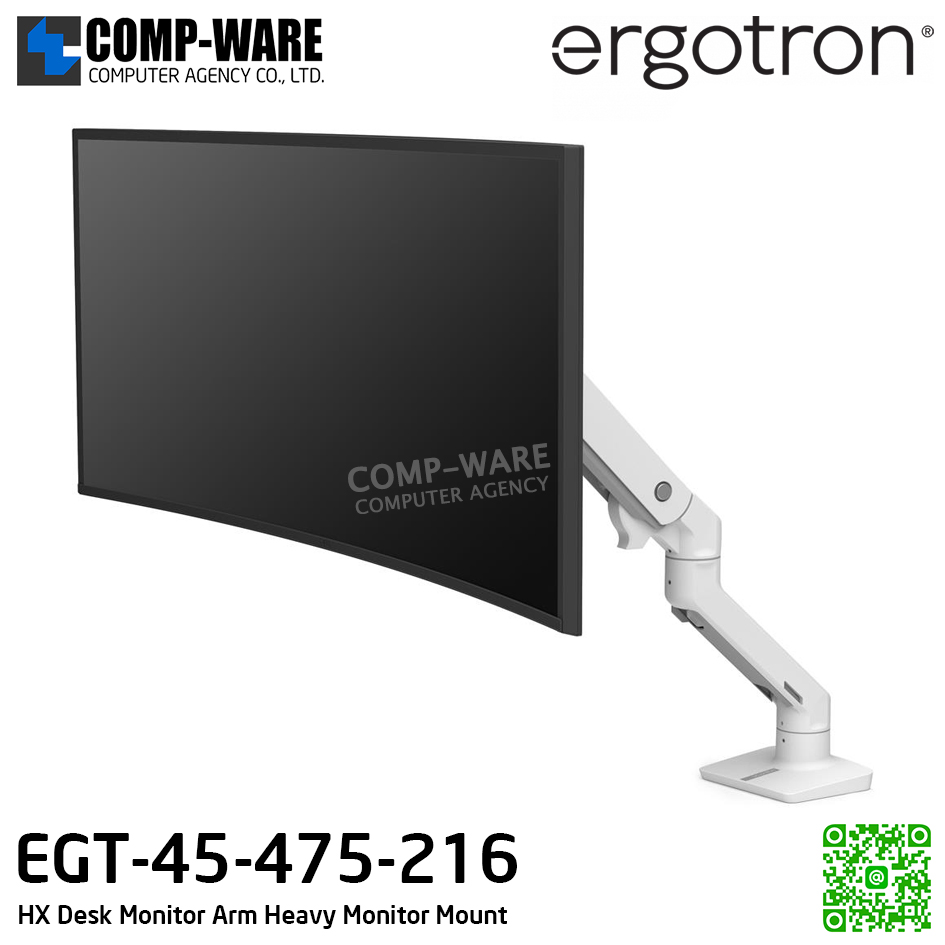

HX Desk Monitor Arm (white)

Heavy Monitor Mount

Choose a monitor arm that’s as adaptable as you. With the HX Desk Monitor Arm, you can easily reposition large monitors weighing up to 42 lbs (19.1 kg) using patented Constant Force™ Technology. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity. It’s BIFMA level® 2 certified based on the arm’s low environmental and social impact.

NOTE: To use this arm with the ultra-wide, curved Samsung 49" Odyssey G9, the accessory HX Heavy-Duty Tilt Pivot is required. See Tech Specs.

• Comfortable fit Offers ergonomic monitor positioning using patented Constant Force™ Technology
• Rotation stop Avoid hitting cube walls with a rotation-stop on the base
• Saves space Places screen in the best view to tackle each to-do
• Sleek build Cables stay hidden under the arm and through the extension
• Sustainable choice BIFMA level® 2 certified for a low environmental and social impact
• Quality design Built for thousands of movements by passing 10,000-cycle test

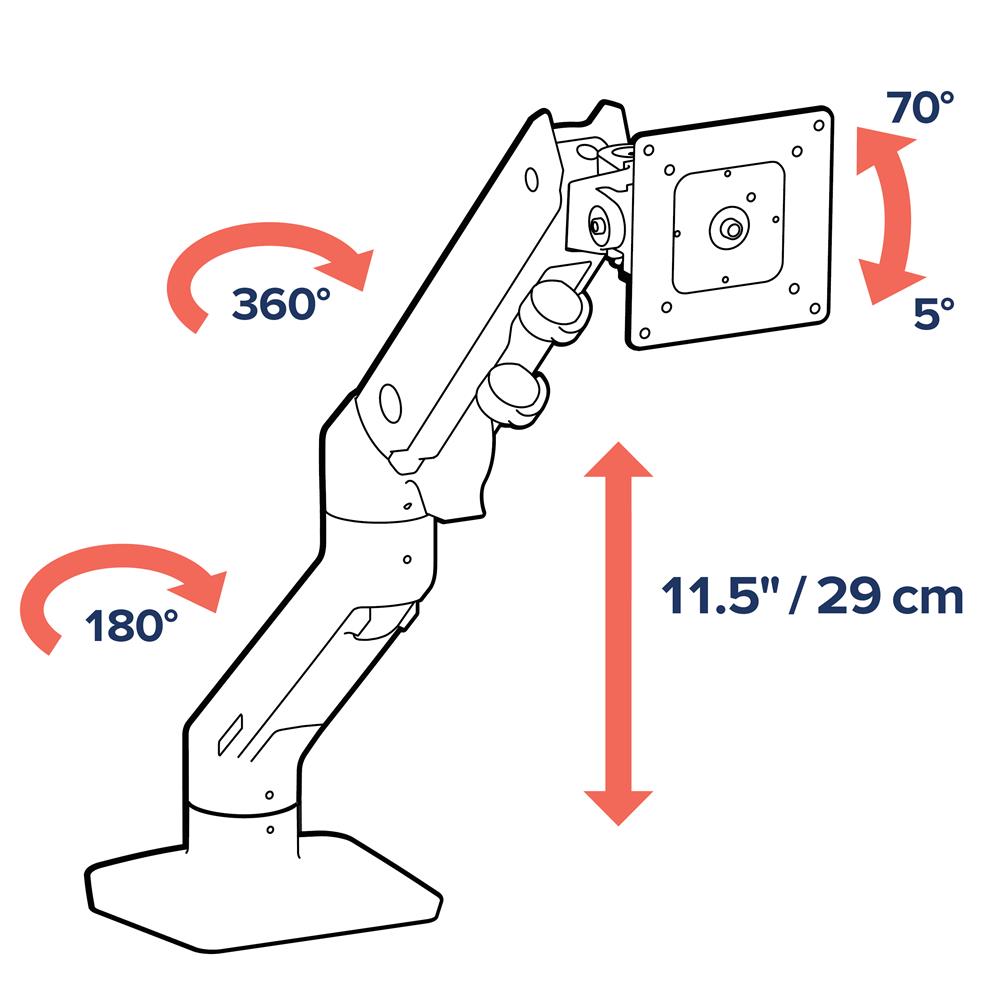

Screen	Capacity	Lift	Tilt	Pan	Rotation	Vesa	Warranty
≤49"	9.1–19.1 kg	11.5" 29.2 cm	75° †	180°	360°	MIS-D/E/F ‡	10 Years

Part Number: 45-475-216

Description: HX Desk Monitor Arm (white)

Includes arm, extension, monitor pivot, desk clamp, grommet mount, mounting hardware

Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas

Portrait/landscape rotation with lockout

Streamlined cable management routes cables under arm and within extension

Desk clamp attaches to surface edge 0.4" to 2.6" (1 to 6.6 cm) thick

Grommet mount attaches through surface holes

§ Weight Capacity: 20–42 lbs (9.1–19.1 kg). Note: Display depth > 6" (15 cm) may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility. For a display weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required

To use an HX arm with the ultra-wide, curved Samsung 49" Odyssey G9 Monitor, also order the accessory HX Heavy-Duty Tilt Pivot (98-540-216)

* Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base

‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm

† Tilt Range: 70° backward, 5° forward

This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

Product Weight: 15.25 lbs (6.9 kg)

Shipping Dimensions: 12" x 19.2" x 7" (30.5 x 48.8 x 17.8 cm)

Shipping Weight: 18.3 lbs (8.3 kg)

Warranty: Ten years

Part Number (color): 45-475-216 (white), 45-475-224 (matte black), 45-475-026 (polished aluminum)

Description: HX Desk Monitor Arm

Includes arm, extension, monitor pivot, desk clamp, grommet mount, mounting hardware

Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas

Portrait/landscape rotation with lockout

Streamlined cable management routes cables under arm and within extension

Desk clamp attaches to surface edge 0.4" to 2.6" (1 to 6.6 cm) thick

Grommet mount attaches through surface holes

§ Weight Capacity: 20–42 lbs (9.1–19.1 kg). Note: Display depth > 6" (15 cm) may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility. For a display weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required

To use an HX arm with the ultra-wide, curved Samsung 49" Odyssey G9 Monitor, also order the accessory HX Heavy-Duty Tilt Pivot (98-540-216)

* Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base

‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm

† Tilt Range: 70° backward, 5° forward

This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

Product Weight: 15.25 lbs (6.9 kg)

Shipping Dimensions: 12" x 19.2" x 7" (30.5 x 48.8 x 17.8 cm)

Shipping Weight: 18.3 lbs (8.3 kg)

Warranty: Ten years
