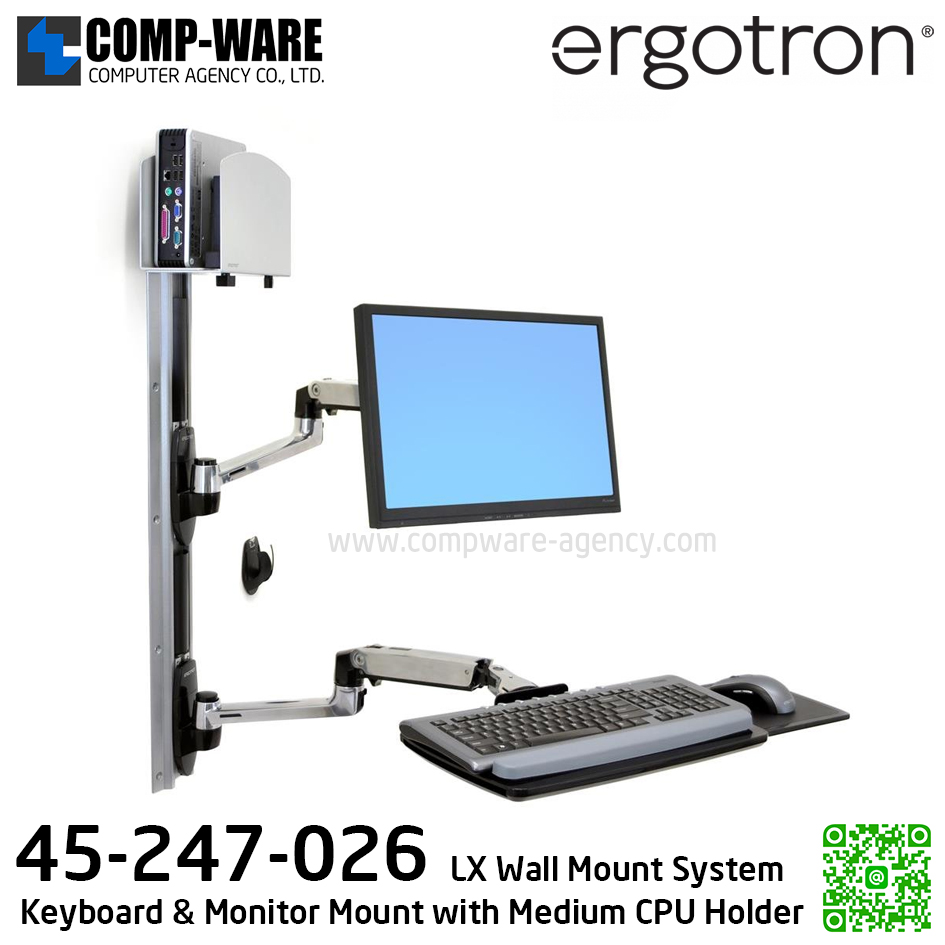

LX Wall Mount System (COLOR: POLISHED ALUMINUM)

Keyboard & Monitor Mount with Medium CPU Holder

Build stronger connections with patients—while comfortably completing documentation—with this complete workstation. Easily reposition your screen or keyboard up and down or side to side to keep eye contact with your patients. The wall mount system supports an LCD, keyboard and a medium CPU with a compact footprint that fits in tight spaces.

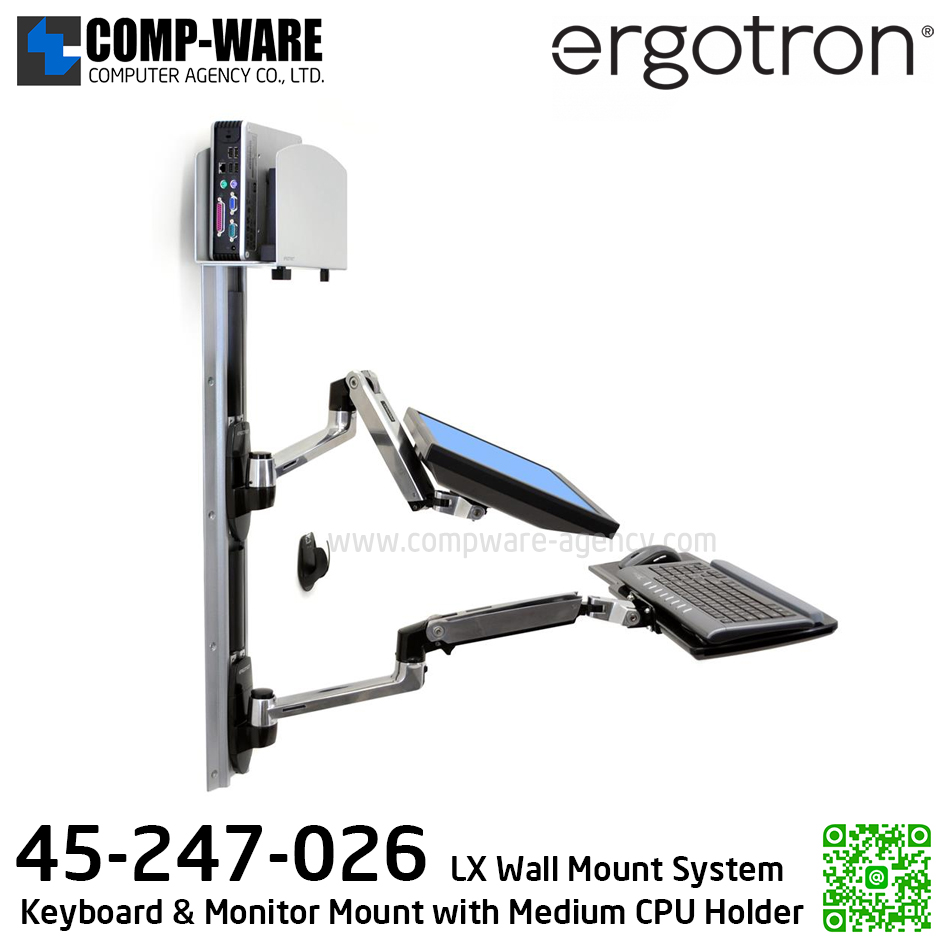

• More motion Offers 13" of height adjustment with full tilt and pan
• Ergonomic set-up Back-tilt keyboard tray protects wrists from pain or injury

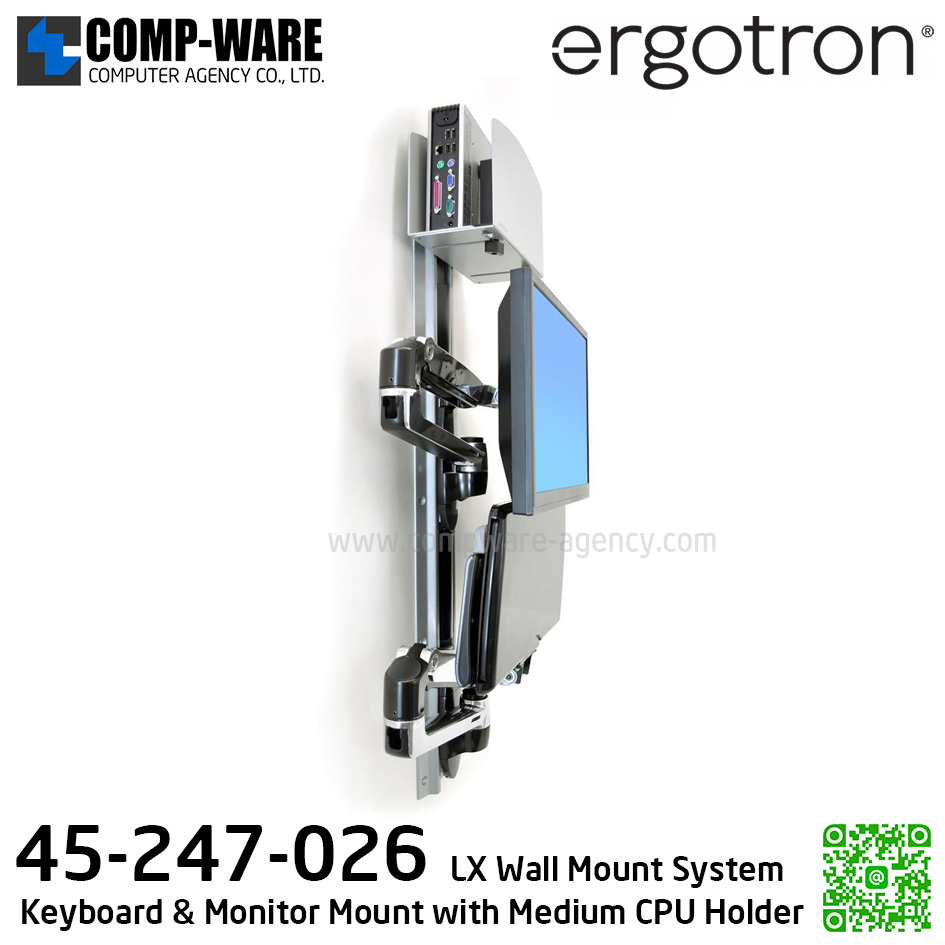

• Saves space Folds within inches of the wall when not in use
• Large extension Offers 25" of screen extension and 35" of keyboard tray extension
• Flexible installation  Just loosen the screws to change the arm location on the Wall Track
• Quality design Built for thousands of movements by passing 10,000-cycle test

Screen	Capacity	Lift	Tilt	Pan	Rotation	Vesa	Warranty
≤32"	2.3-11.3 kg	13" 33.0 cm	75°	360°	360°	MIS-D	10 Years

Part Number: 45-247-026

Description: LX Wall Mount System (polished aluminum)

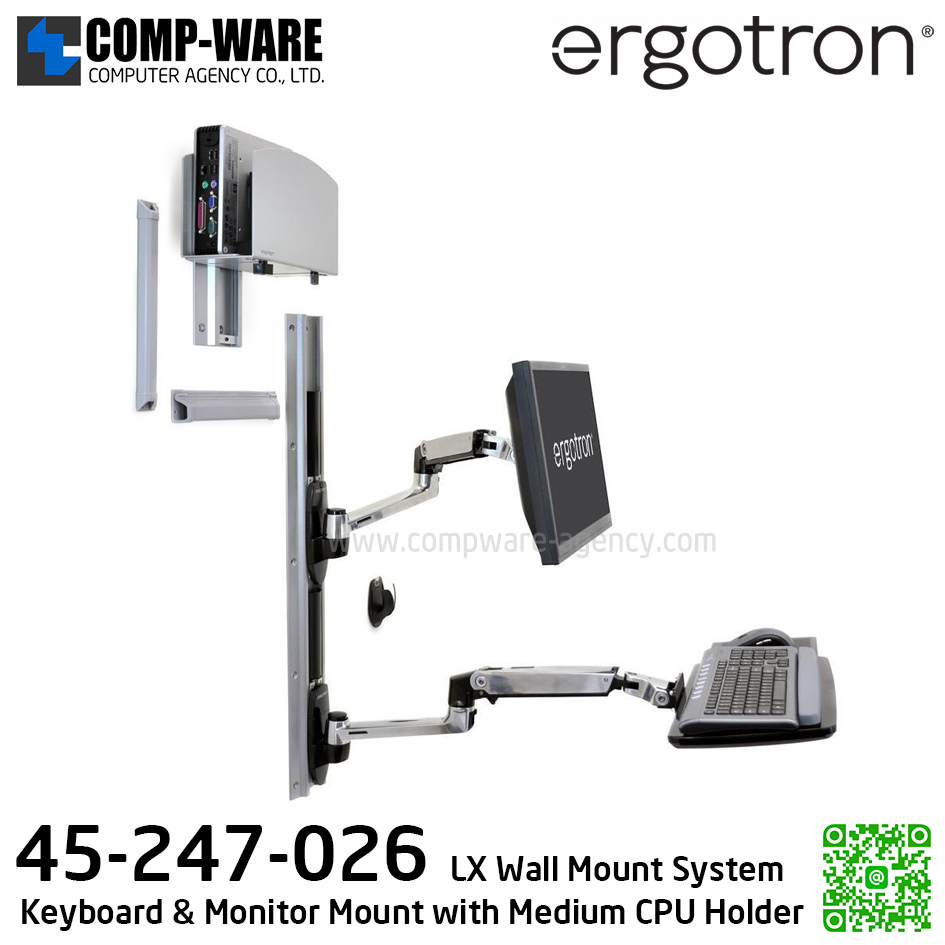

Includes: 10" and 34" Wall Tracks with (2) black track covers, LX Wall Mount LCD Arm, LX Keyboard Arm, wrist rest, mouse holder, Medium CPU Holder, CPU spacer, CPU and Arm track mount bracket kits, two (2) 10" Cable Channels, mounting kits for hollow-wall and wall-stud installation

Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

Improved LX Arm Features & Benefits

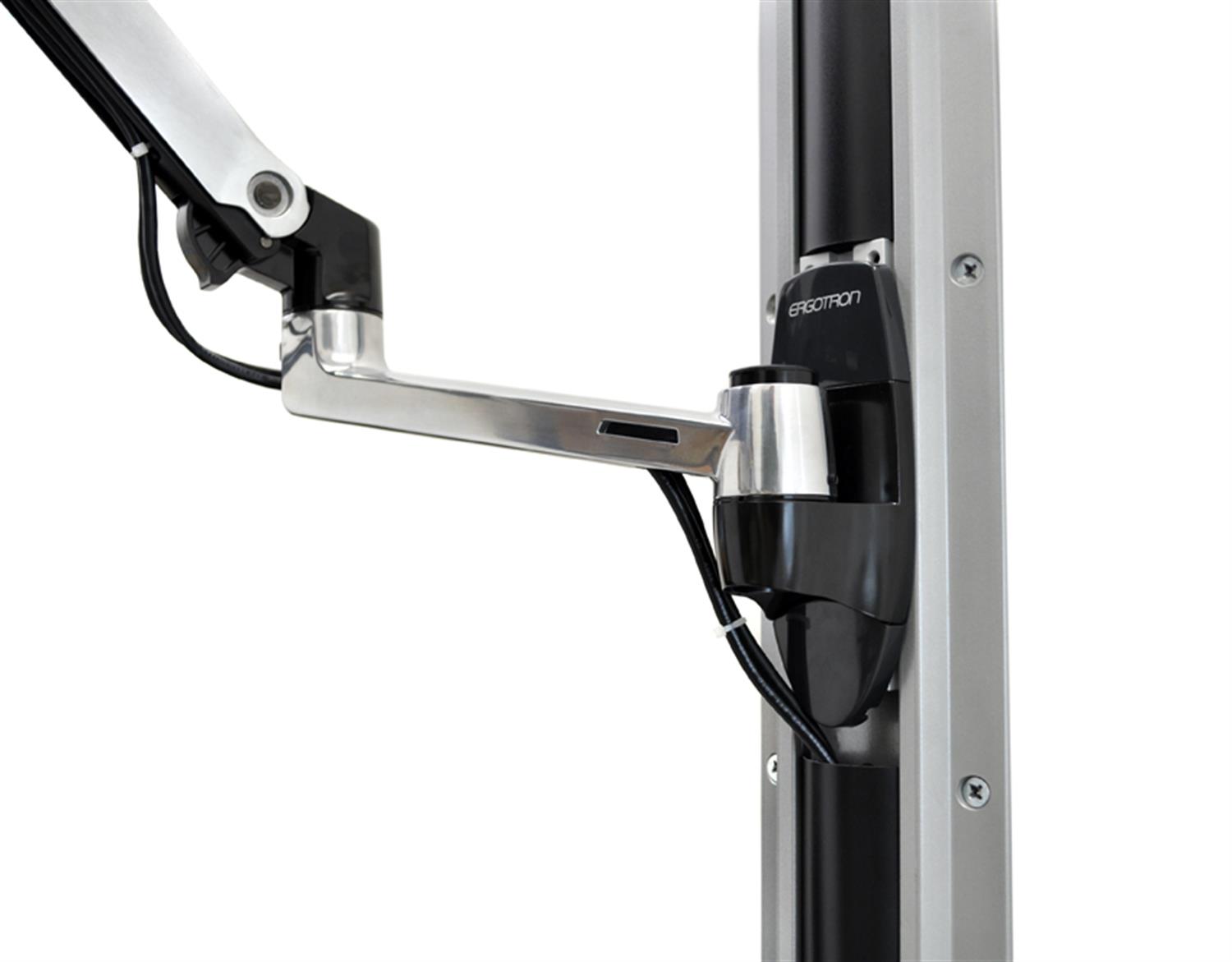

Polished aluminum construction offers greater durability and enhanced aesthetics

Snap-fit cap secures interface of arms to extensions for greater stability

* Weight Capacity: display = 5–25 lbs (2.3–11.3 kg); keyboard = 5 lbs (2.2 kg); CPU = 40 lbs (18 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)

Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

CPU Size Range: 3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder

CPU Holder includes theft deterrent anchor holes for cable locks and fasteners for locking the holder’s width

Base includes theft deterrent anchor holes for cable locks

Product Weight: 30.7 lbs (14 kg)

Shipping Dimensions: 37" x 22 " x 7.5" (94 x 56 x 19 cm)

Shipping Weight: 40 lbs (18 kg)

Warranty: Ten (10) years
