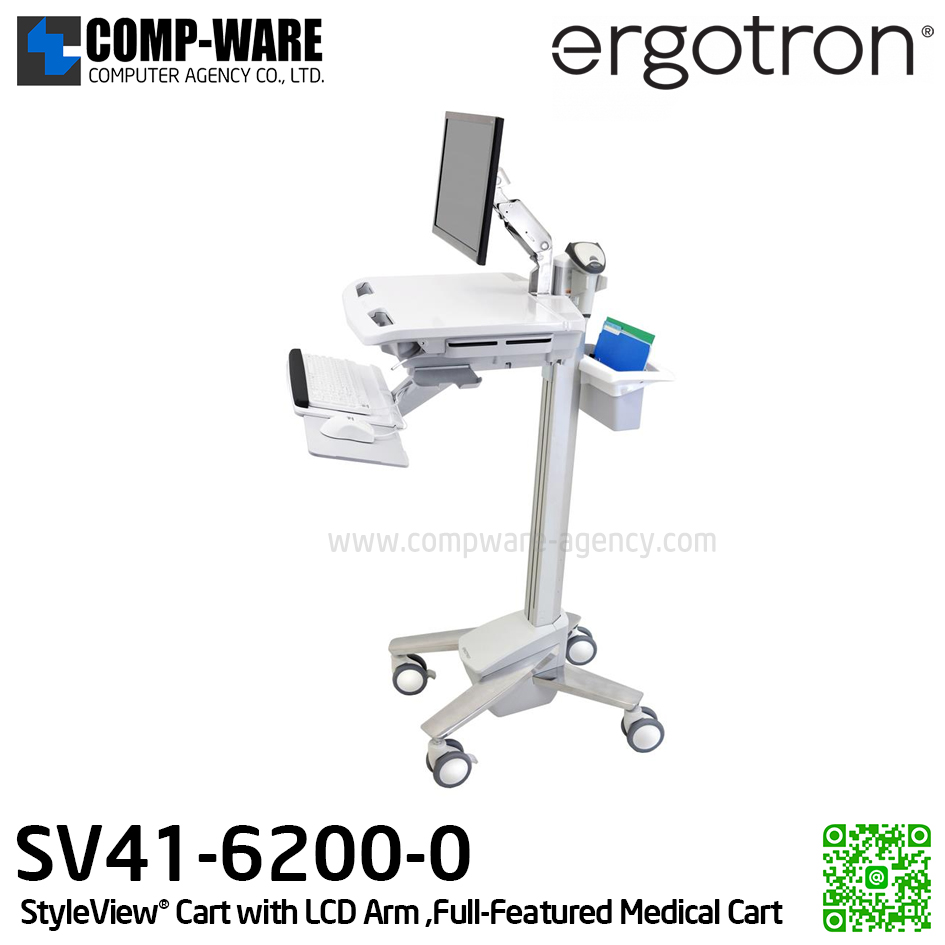

StyleView® Cart with LCD Arm

Full-Featured Medical Cart

This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, side-to-side LCD and keyboard motion, bi-focal viewing and an adjustable back-tilt keyboard tray.

• Effortlessly maneuver the cart to the point of need—StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients
• Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment—helps promote caregiver wellness and productivity
• StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
• Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
• Surfaces are treated with antimicrobial for product protection
• LCD and keyboard pan side-to-side for closer access while interacting with clients; arm also reaches low for people wearing bifocals or using a tablet PC
• Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment

Screen	Capacity	Lift	Tilt	Pan	Rotation	Vesa	Warranty
≤24"	≤15.9 kg	27" (68.6 cm) †	65° ‡	180°	360° **	MIS-D	5 Years

Description: StyleView LCD Cart, non-powered, arm (white, grey and polished aluminum)

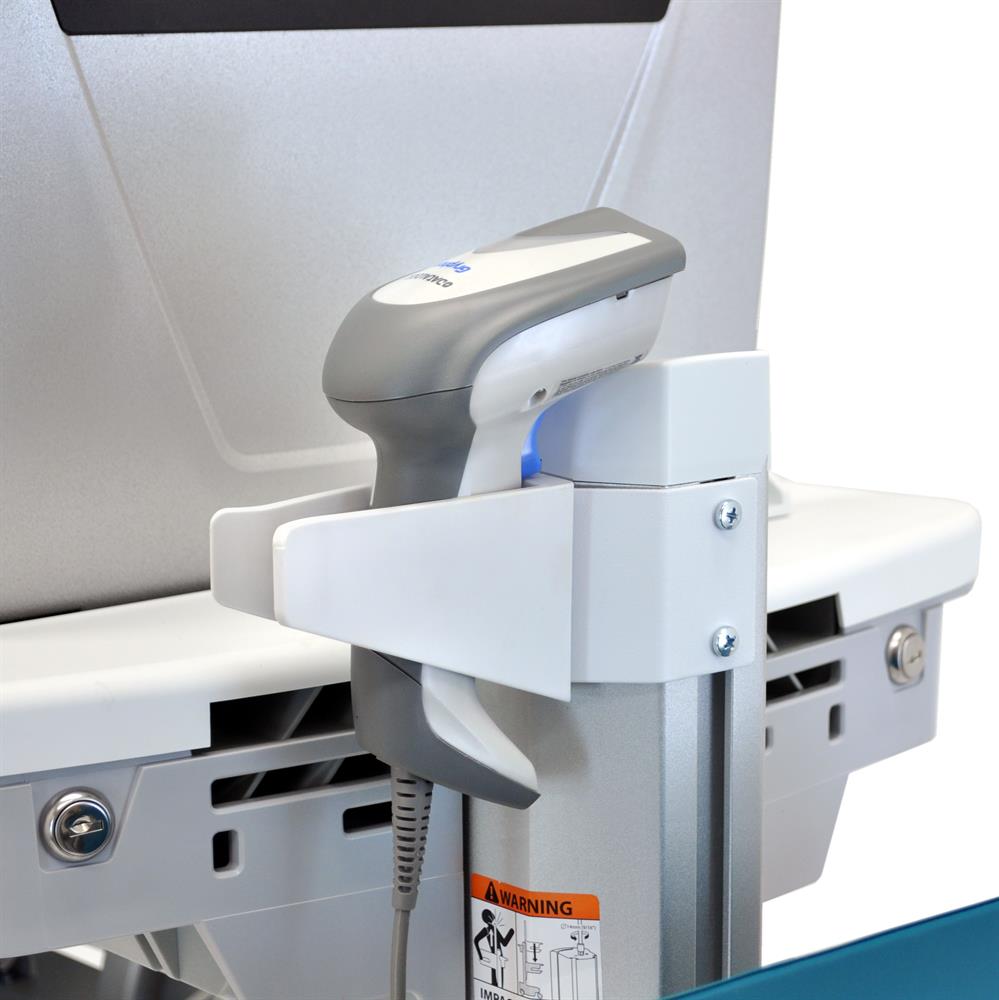

Includes LCD arm, worksurface, CPU lock, secure CPU compartment, four-port USB hub, scanner holder bracket, mouse holder, wrist rest, back-tilt keyboard tray, left/right mouse tray, rear handle, storage basket, cable storage, four casters (two locking)

* Total maximum load on height-adjustment assembly = 35 lbs (15.9 kg). This is the sum of the following components: LCD arm = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg)

Note: If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)

† LCD and worksurface adjust 20" (51 cm) in tandem; LCD Arm adjusts 7" (17 cm) independently; maximum LCD height adjustment = 27" (68 cm)

‡ Monitor up/down tilt = +60°/-5°

** Portrait screen orientation may be incompatible with widescreen displays > 19"

True Ergonomics

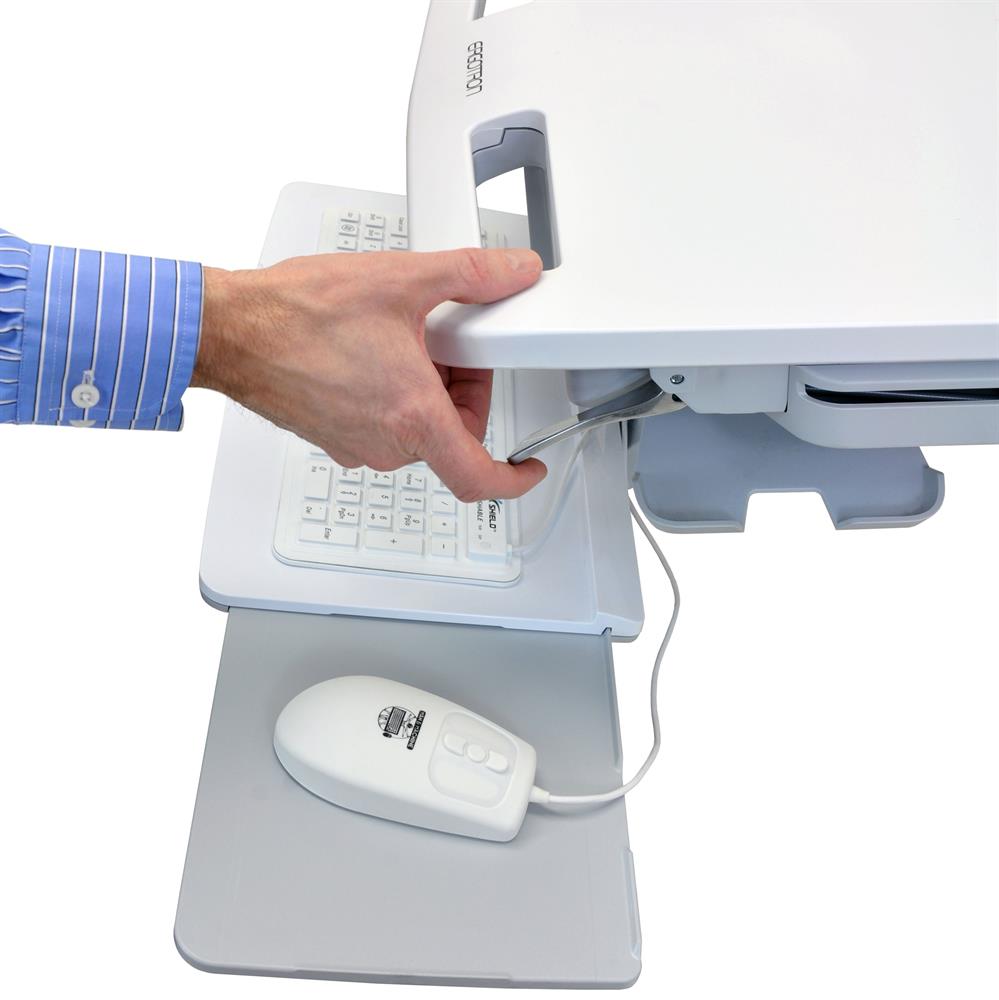

Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity

Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position

Patented CF™ lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

Actual cart weight is just 59 lbs (26.8 kg), making system relocation easy

Arm adjusts screen down low to the worksurface for people wearing bifocals or using a tablet PC

Safe

Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability

Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety

Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

Large, smooth worksurface; easy-to-clean design promotes infection control

Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty

Front-locking casters

CPU lock provided inside the storage compartment for additional security

Designed to meet guidelines established by the American National Standards Institute for computer use

Service

Covered by Global Service Program—24/7 coverage

All the Details Covered

Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off

Button for LED lights is located conveniently on worksurface

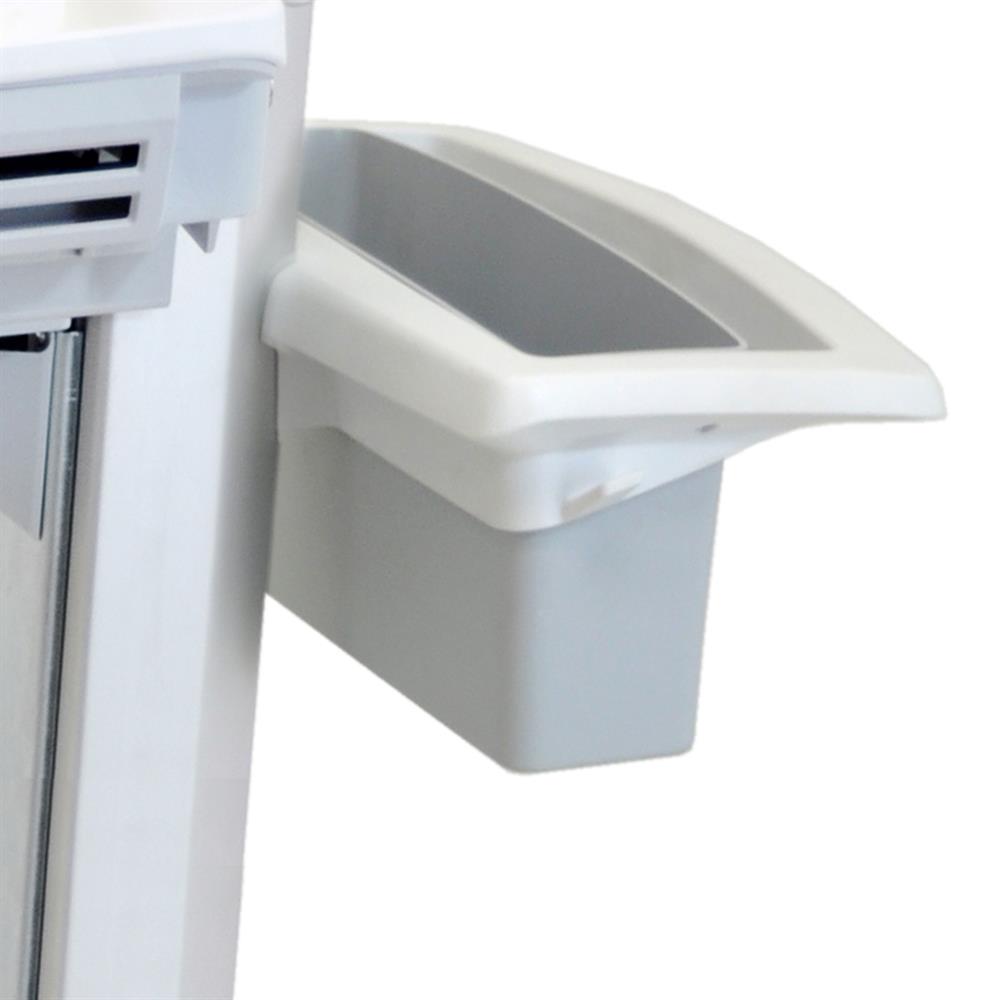

Rear basket keeps task-related items where they can be quickly accessed

Universal mounting slot for accessories and equipment

A unique cable management system conceals and organizes cords, making cleaning easy

Ships fully assembled and is easily accessible from container

Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft

Four-port USB hub

Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions

Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)

Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)

Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Shipping Dimensions: 53"H x 34"W x 36"D (135 x 89 x 91 cm)

Shipping Weight: 86 lbs (39.1 kg); actual cart weight = 59 lbs (26.8 kg)

Warranty: Five (5) years for mechanical components, one (1) year for electrical components
