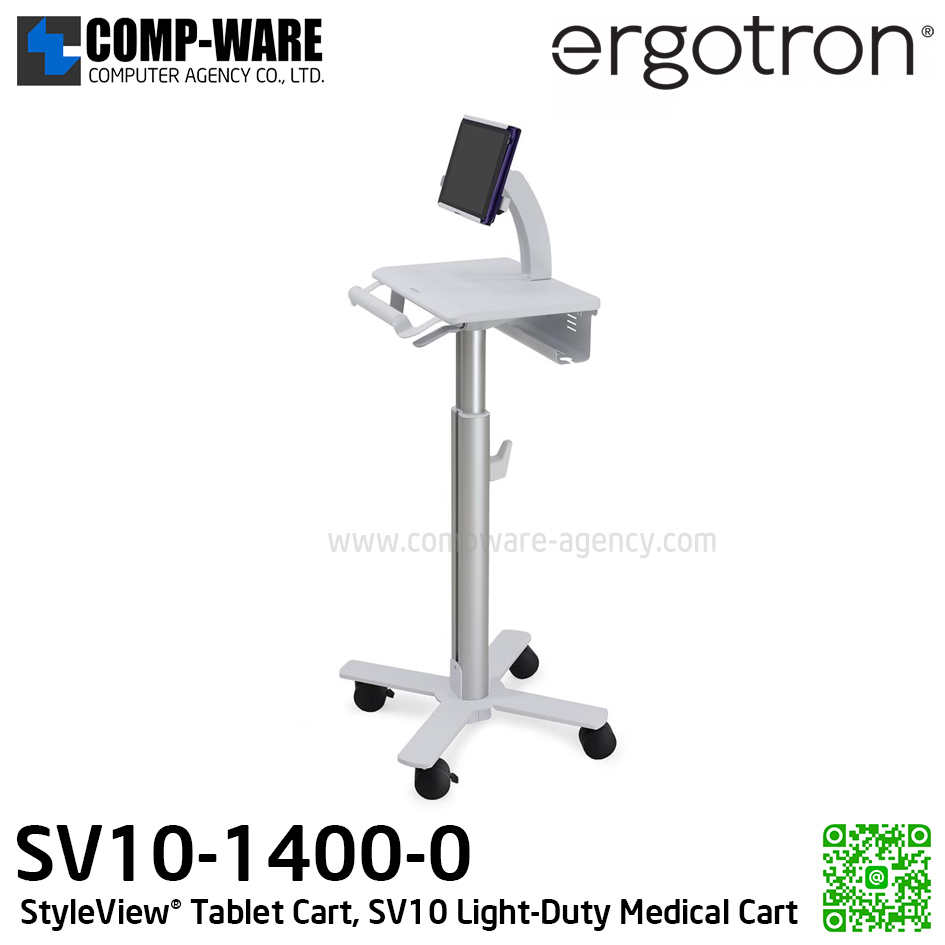

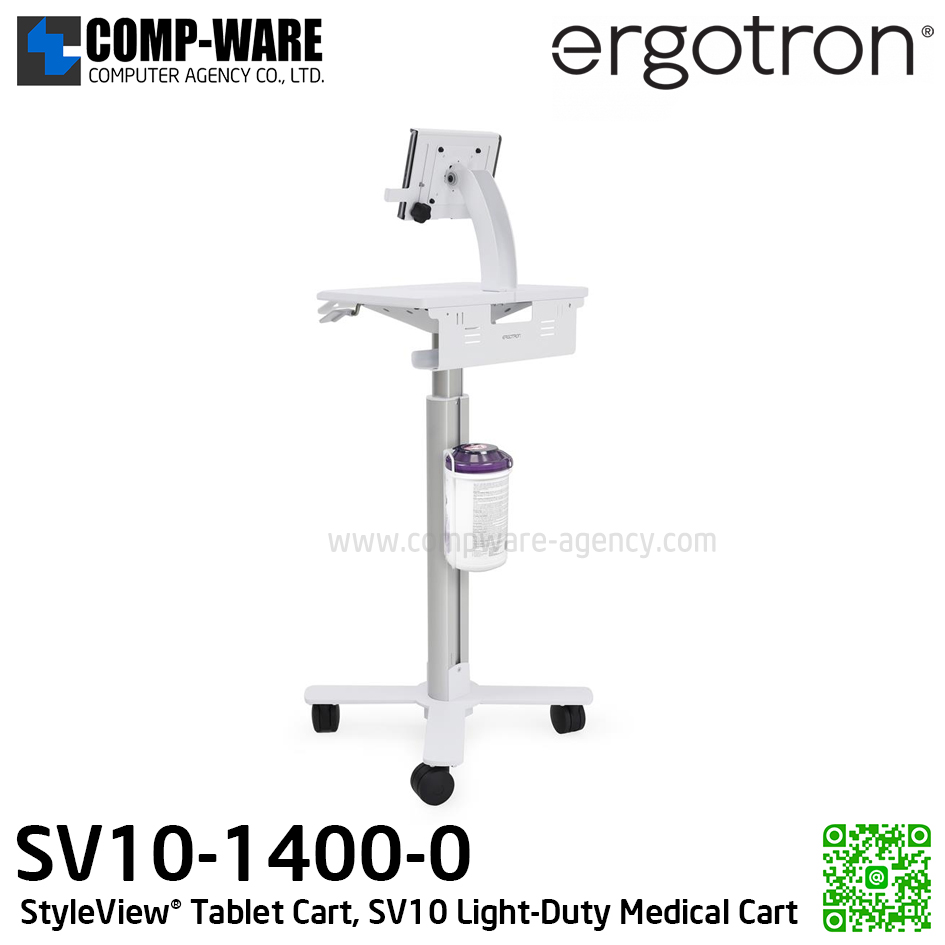

StyleView® Tablet Cart, SV10

Light-Duty Medical Cart

The nimble SV10 effortlessly moves to the point of need, using a versatile interface to accommodate almost any tablet. Its patented lift engine easily adjusts the platform and screen to exactly the right height for whatever task is at hand.

• Height adjustable yet small, simple and lightweight
• Fifteen inches (38 cm) of vertical travel for seated and standing use
• Sturdy and safe metal construction
• Smooth, easily cleanable surfaces
• Integrated hand-brake secures platform height to provide an ultra-stable worksurface

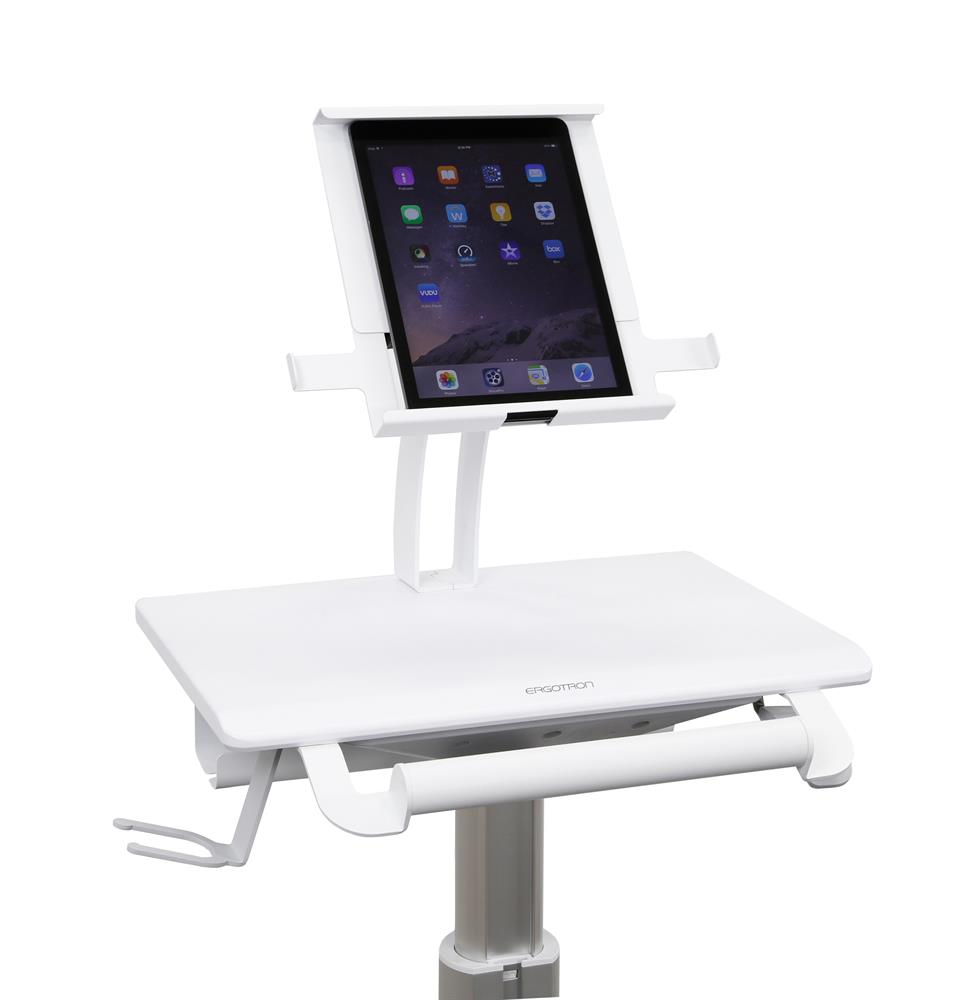

• Tilt the tablet to your preferred input position—work with screen angled vertically, horizontally or anywhere in between
• Choose the level of security that is right for your tablet †
• The worksurface provides a convenient platform for a keyboard
• The t-slot channel interface on the cart’s column allows integration of accessories to customize a solution that’s right for your application

Screen	Capacity	Lift	Tilt	Pan	Rotation	Vesa	Warranty
≤12" §	≤1.1 kg	15" (38.1 cm‡)	128°	-	-	MIS-D†	7 Years

Part Number: SV10-1400-0

Description: StyleView Tablet Cart, SV10, non-powered (white and aluminum)

Includes worksurface, cable/brick storage compartment, storage hook, 3" (75 mm) casters (2 locking), tablet riser with tilting tablet mount assembly, scanner holder

† Choose the level of security that is right for your tablet. This cart ships with three options: Hard-mount your tablet case directly to the VESA mount at the top of the riser if case includes VESA hole pattern; or add the easel bracket to the VESA mount and place your tablet on its surface; add the top grip to the easel bracket to clamp the tablet for extra stability when moving the cart. VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Tablet can be installed in either landscape or portrait mode

§ When installing tablet using easel bracket, tablet must fit within these dimensions: maximum outside width = 12.25" (31 cm); minimum outside height = 6.5" (16.5 cm); maximum outside height = 9.5" (24 cm)

* Weight Capacity: tablet ≤ 2.5 lbs (1.1 kg); cable management storage ≤ 2 lbs (1 kg); column ≤ 20 lbs (9.1 kg), including accessories added to t-slot channel interface and storage hook

‡ Minimum worksurface height = 33" (84 cm); maximum worksurface height = 48" (122 cm)

Tested to UL/EN/IEC specifications for enhanced patient safety

Worksurface Dimensions: 18" x 12.5" (45.7 x 31.8 cm)

Cable management storage area beneath worksurface for power brick and excess cable or power strip: 14.5" x 2.75" (36.8 x 7 cm)

Scanner holder included; attaches beneath worksurface on the left side only

Base Footprint Dimensions: 19" x 19" (48.3 x 48.3 cm)

Powder-coat paint finish on steel surfaces

Cart Weight: 33 lbs (15 kg)

Shipping Dimensions: 40" x 23.5" x 23.5" (102 x 60 x 60 cm)

Shipping Weight: 51 lbs (23 kg)

Warranty: Seven (7) years
