รายละเอียดสินค้า

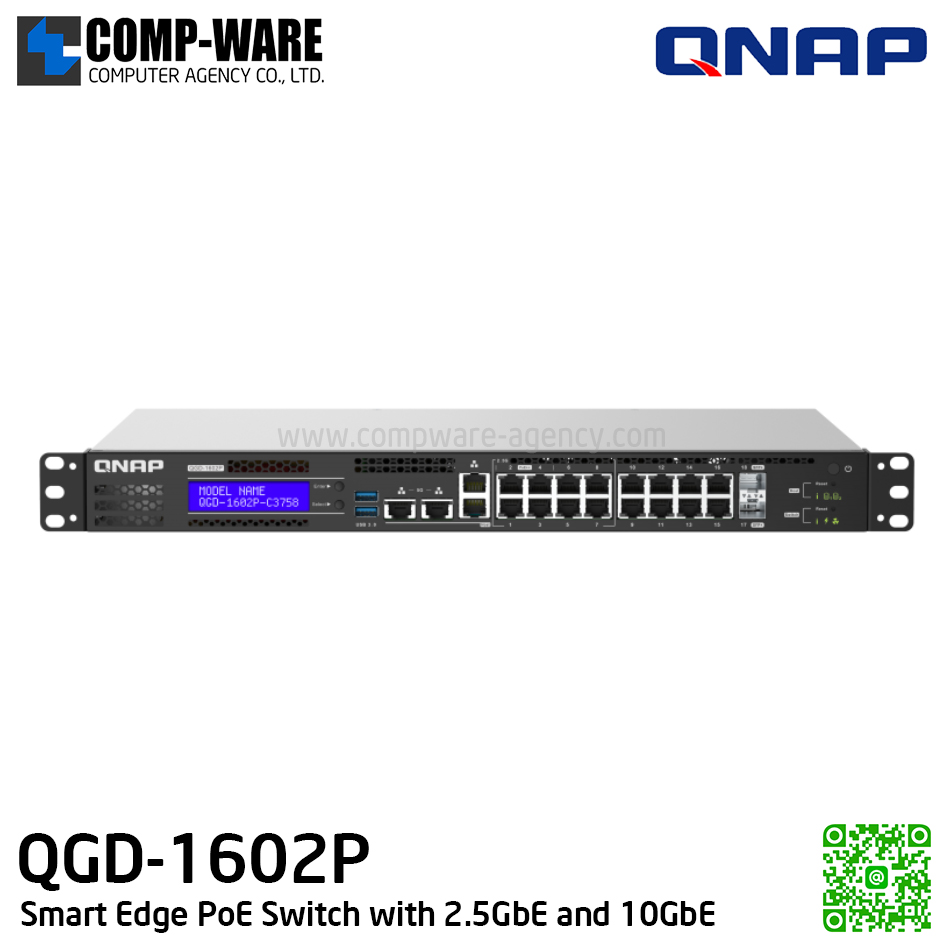

QGD-1602P

Smart Edge PoE Switch with 2.5GbE and 10GbE Capability for the Wi-Fi 6 & SD-WAN Generation

The QNAP QGD-1602P is the world’s first PoE managed switch series that supports Virtual Machines (VMs). Featuring 2.5GbE and 10GbE SFP+ ports and up to 90-watt PoE output, the QGD-1602P allows you to build a high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points and Routers. With a dual-CPU design, the QGD-1602P uses Intel® Atom® multi-core 2.2GHz processors with two SATA drive bays to support VM and QTS applications. The QGD-1602P not only fulfills IP surveillance, network security, wireless AP management, and storage expansion applications, but also integrates QuWAN to form a SD-WAN architecture with other QNAP devices across multiple sites, helping to build a resilient and secure IT infrastructure. With 20GbE internal bandwidth capacity and Intel® QuickAssist Technology (Intel® QAT), the QGD-1602P achieves the high-performance transmission required for edge computing virtualization and IPsec VPN, and offers SMBs a cost-optimized and centrally managed LAN deployment solution.

Hardware Specifications
Model QGD-1602P-C3758-16G

Management Type Web managed
CPU  Intel® Celeron® C3758 8-core 2.2 GHz processor

CPU Architecture
64-bit x86

System Memory
16 GB (1 x 16GB)

Drive Bays 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Number of Ports 18
1GbE (RJ45) 8
1GbE SFP+ 2
2.5GbE (RJ45) 8
Total PoE Ports 16
PoE PSE (802.3af, 15.4W)
Ports 1-16

PoE+ PSE (802.3at, 30W)
Ports 1-16

PoE++ PSE (802.3bt, 60W)
Ports 1-4

PoE Power Output
Ports 1-4 (60W), Ports 5-16 (30W)

Total PoE Power Budget
200W

PCIe Slot
  • Slot 1: PCIe Gen3 (x4)
  • Slot 2: PCIe Gen3 (x4)

USB 3.2 Gen 1 port 2
USB 2.0 port -
Management Port 2 x 5GbE ; 2 x 1GbE
USB 3.2 Gen 2 (10Gbps) Port Optional via PCIe adapter
HDMI Output 1
Power Supply Description Internal Power Supply Unit
Max. Power Consumption 280W
Input Power Type AC
Input Voltage Range
100-240VAC, 50/60 Hz
MAC Address Table
32K

Total Non-Blocking Throughput
48Gbps

Switching Capacity
96Gbps

Management Interface
Web

Energy Efficient Ethernet (IEEE 802.3az complaint)
Yes
Fan
System: 3 x 4cm (12V DC)

Supported Standards
  • IEEE 802.3u 100Tx Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet
  • IEEE 802.3an 10GBASE-T 10G Ethernet
  • IEEE 802.3ae 10GBASE-SR
  • IEEE 802.3ae 10GBASE-LR
  • IEEE 802.3z 1000Base-X
  • IEEE 802.3x Full-duplex flow control
  • IEEE 802.3af/at/bt Power-over-Ethernet (PoE)
  • IEEE 802.1q Virtual LANs (VLAN)
  • IEEE 802.1p QoS Protocol for Traffic Prioritization

Form Factor Rackmount
LED Indicators
  • Per Port: Link/Activity/Speed/PoE
  • Per System: Warning/PoE/Fan

LCD Management Yes
Buttons
  • Device PSU power button
  • Host power button
  • Host reset button(load default)
  • Switch reset button

Weight (Net) 4.37 kg
Dimensions (HxWxD) 44.2 × 435.2 × 327.7 mm
Warranty 2 Years

Full Spec >> QGD-1602P
