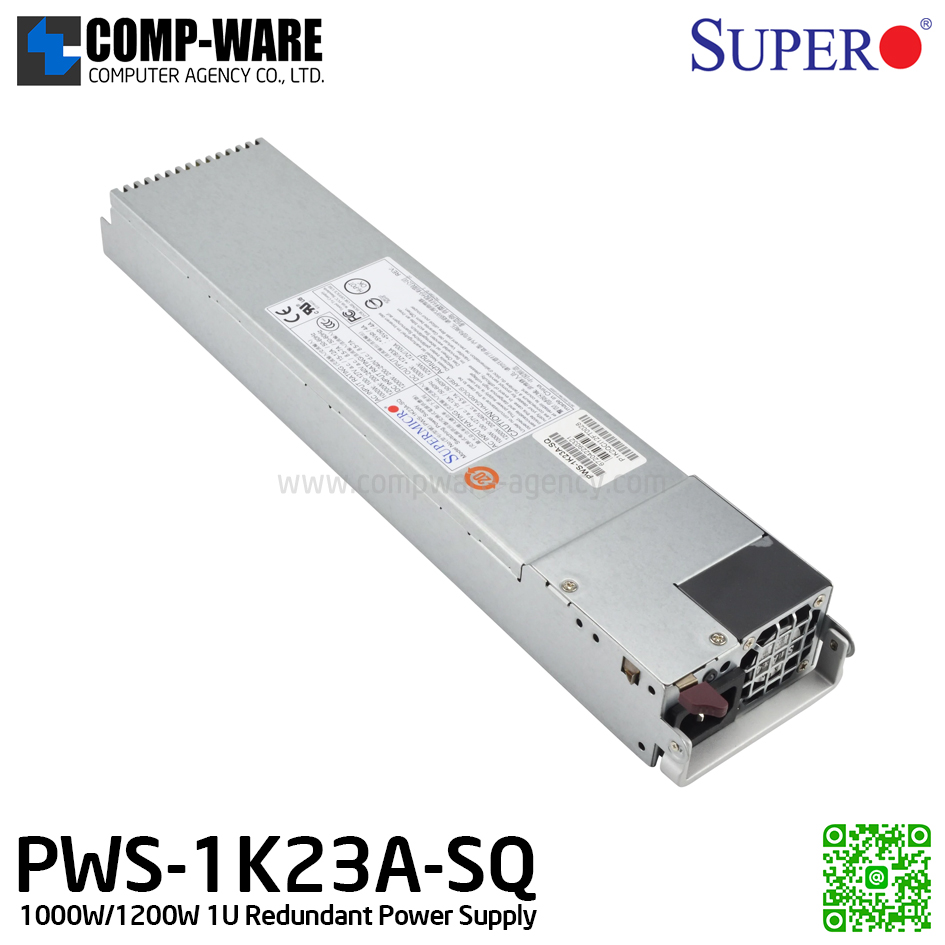

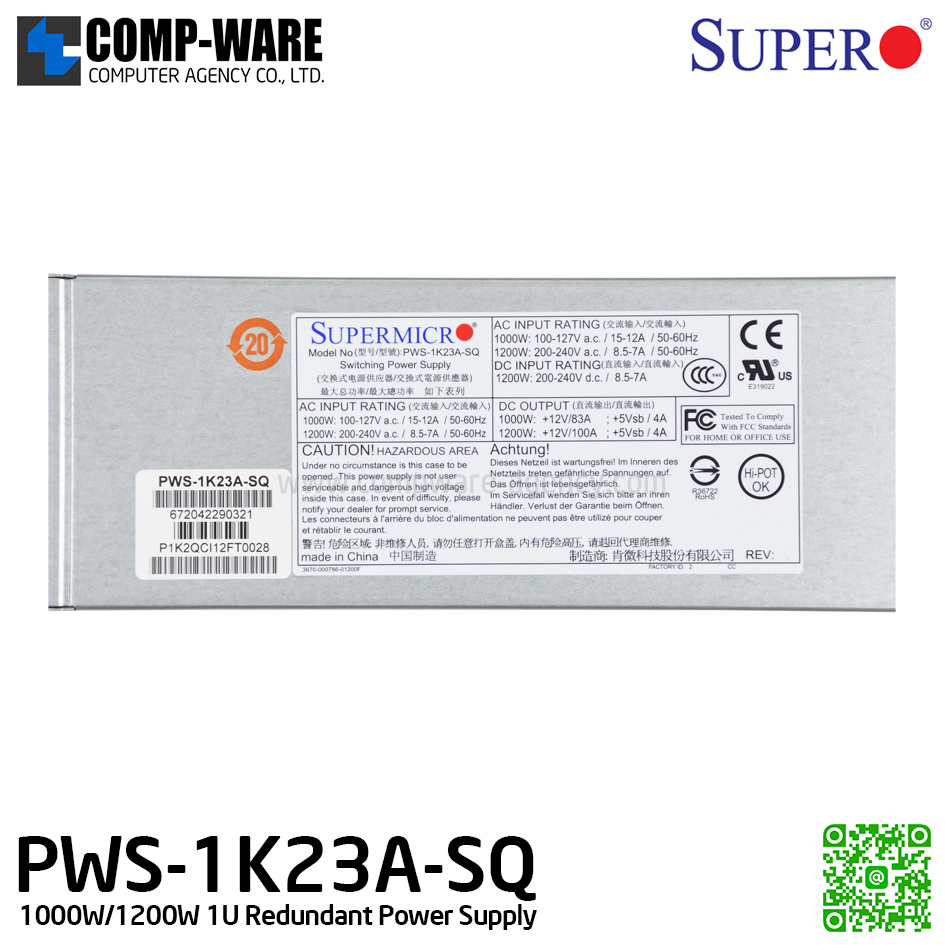

Supermicro 1000W/1200W 1U Redundant Power Supply PWS-1K23A-SQ [SPARE PART]

Supermicro 1000W/1200W 1U Redundant Power Supply PWS-1K23A-SQ [SPARE PART]

• PMBus 1.2 Support for Remote Management
• Optimized for 1U Server
• Flexible Redundancy Control
• Supermicro Certified

The Supermicro PWS-1K23A-SQ is capable of supplying 1000W/1200W output power at 96% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

SPECIFICATION
MODEL	PWS-1K23A-SQ
TOTAL POWER OUTPUT	1000W/1200W
TYPE	Redundant
FORM FACTOR	1U
DIMENSION (W X H X L)	76 x 336 x 40mm
INPUT VOLTAGE RANGE	100-127Vac / 1000W 200-240Vac / 1200W 200-240Vdc / 1200W (for CCC only)
INPUT FREQUENCY RANGE	50-60Hz
PMBus	100-127Vac / 15 – 12A 200-240Vac / 8.5 – 7A 200-240Vdc / 8.5 – 7A (for CCC only)
OUTPUT TYPE	Gold Finger (19 Pair Connector)
ENERGY EFFICIENCY	96%+ Efficiency
80 PLUS CERTIFICATION	N/A
WARRANTY	1 year
PRODUCT ENVIRONMENTAL COMPLIANCE	RoHS and REACH compliant, details available upon request

• Full Spec>> Supermicro 1000W/1200W 1U Redundant Power Supply (PWS-1K23A-SQ)
